Figure 8 Aerial Self-supporting Cable

Figure 8 Aerial Self-supporting Cable– GYXTC8S

Figure 8 Aerial Self-supporting Cable– GYXTC8S
Item : GYXTC8S
Brand : ATTRAISE

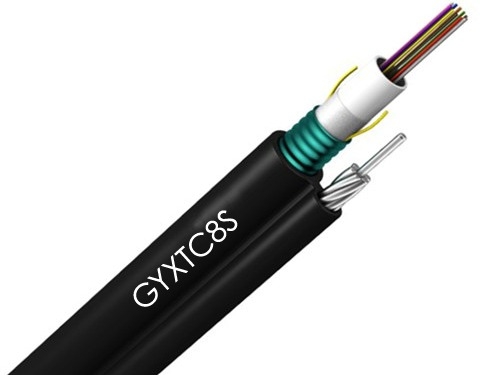

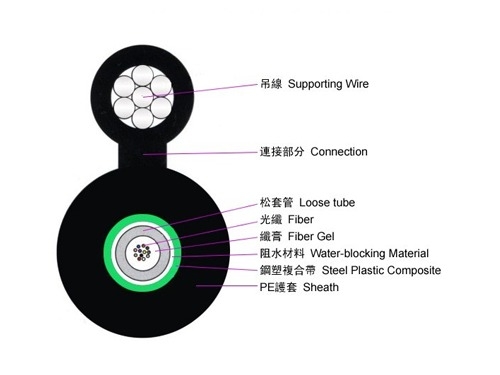

GYXTC8S is an outdoor communication figure 8 aerial self-supporting optical cable of metallic strength member of the central tube jelly-filled structure, with steel-polyethylene laminated sheath.

Full cross-section water-blocking structure and double-sided coated aluminum with vertical cover ensure good water blocking and moisture resistance
The loose tube is filled with special factice for key fiber protection
Vertically-clad steel-tape strengthens the resistance to lateral pressure
The figure 8 aerial self-supporting structure is featured with high tensile strength, easy overhead laying, and low cost of installation
Storage/Operating Temperature: -40°C to 70°C

Number of cores	Maximum fiber cores in loose tube	Cable diameter (mm)	Cable weight (kg/km)	Allowable tension (N)		Allowable flattening force (N/100 mm)
				short term	long term	short term	long term
2 - 8	8	8.1*16.9	117	≥6000	≥2000	≥1000	≥300
10 - 12	12	8.3*17	121
