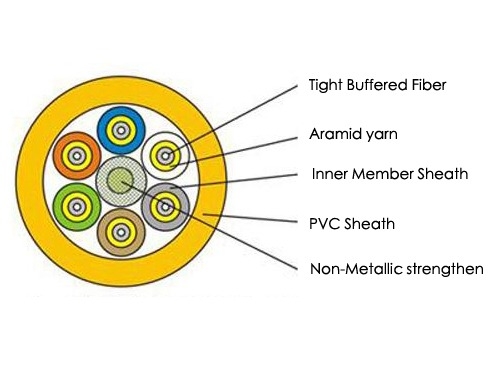

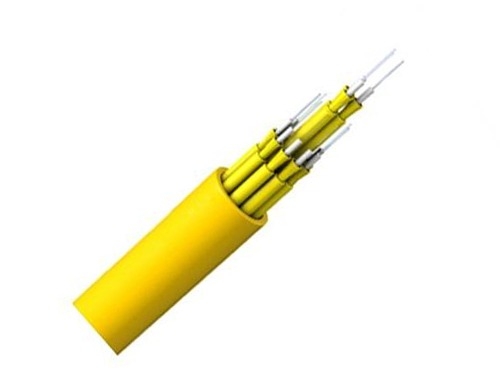

GJFJV MPC multi-purpose distribution cable use 6-fiber subunits (Φ900μm tight buffer fiber, aramid yarn as strength member). A fiber reinforced plastic (FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low Smoke Zero Halogen, Flame-retardant) jacket.
Number of Cores |
Diameter (mm) |
Allowable Tension (N) |
Allowable crush force (N/100mm) |
Operation temperature (°C) |
Color |
|
Fit (N) |
Fst (N) |
|||||
8 |
5.5 |
200 |
660 |
1000 |
-20~60 |
Single mode: Yellow. Multimode: Orange or other colors |
10 |
6.0 |
200 |
660 |
1000 |
||
12 |
6.5 |
200 |
600 |
1000 |
